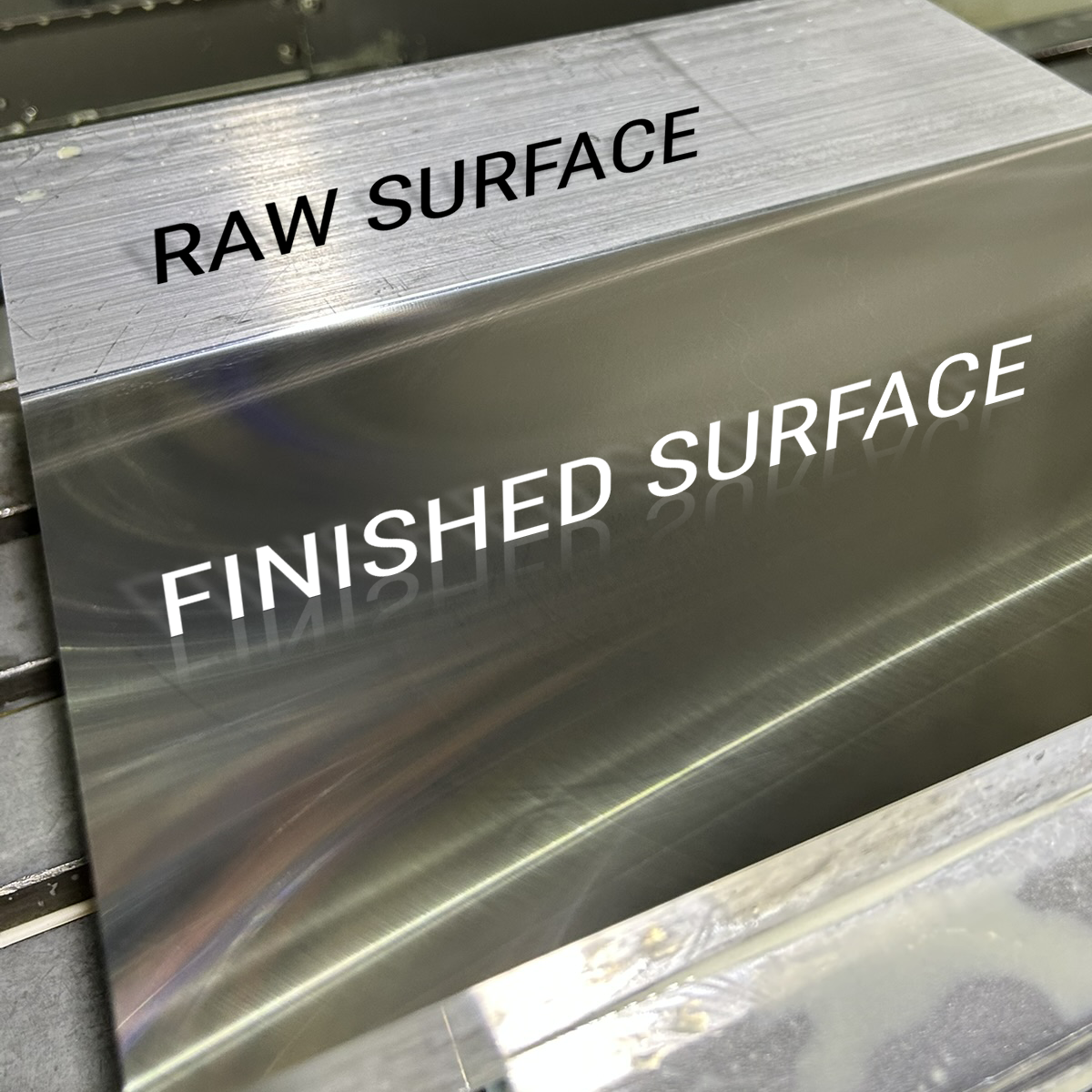

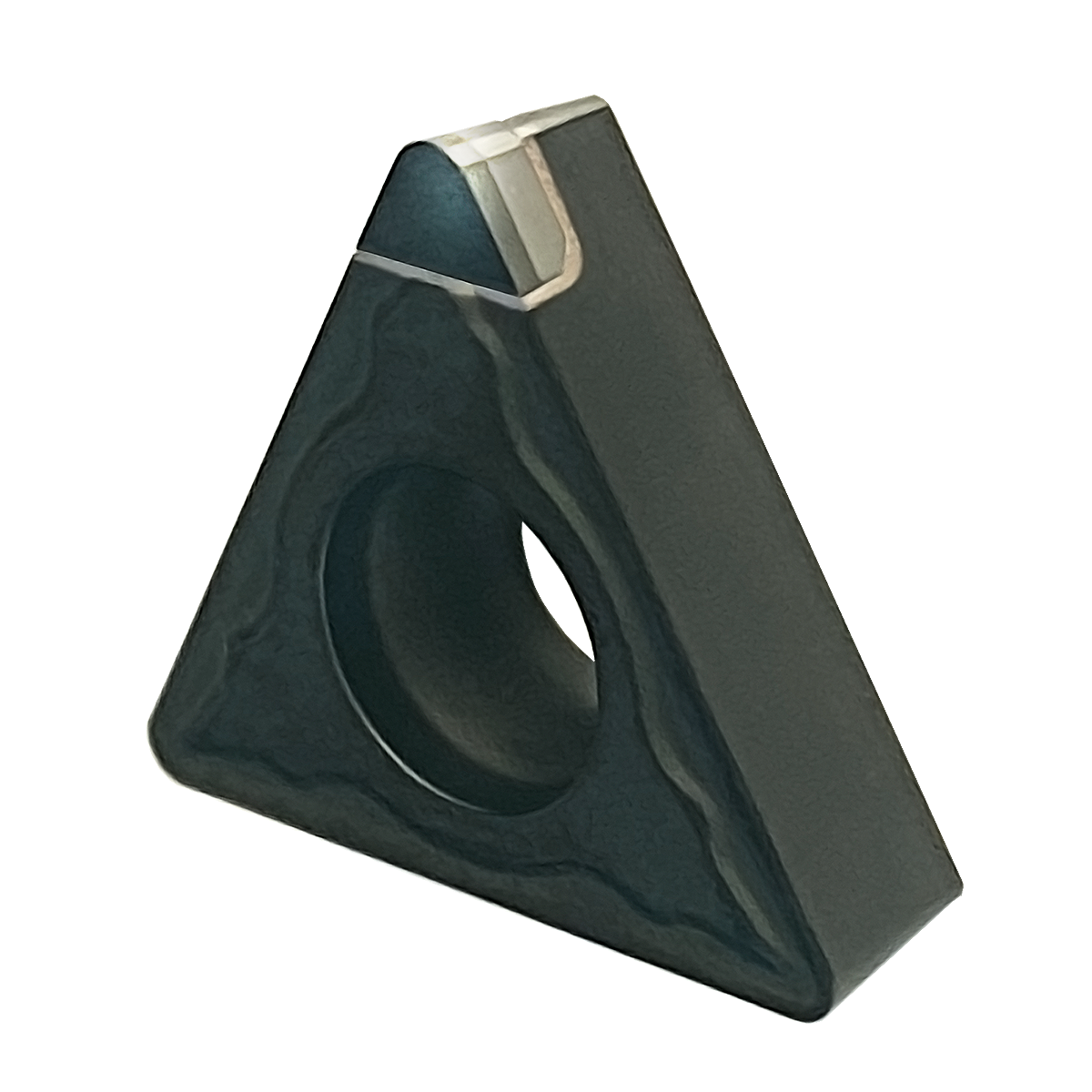

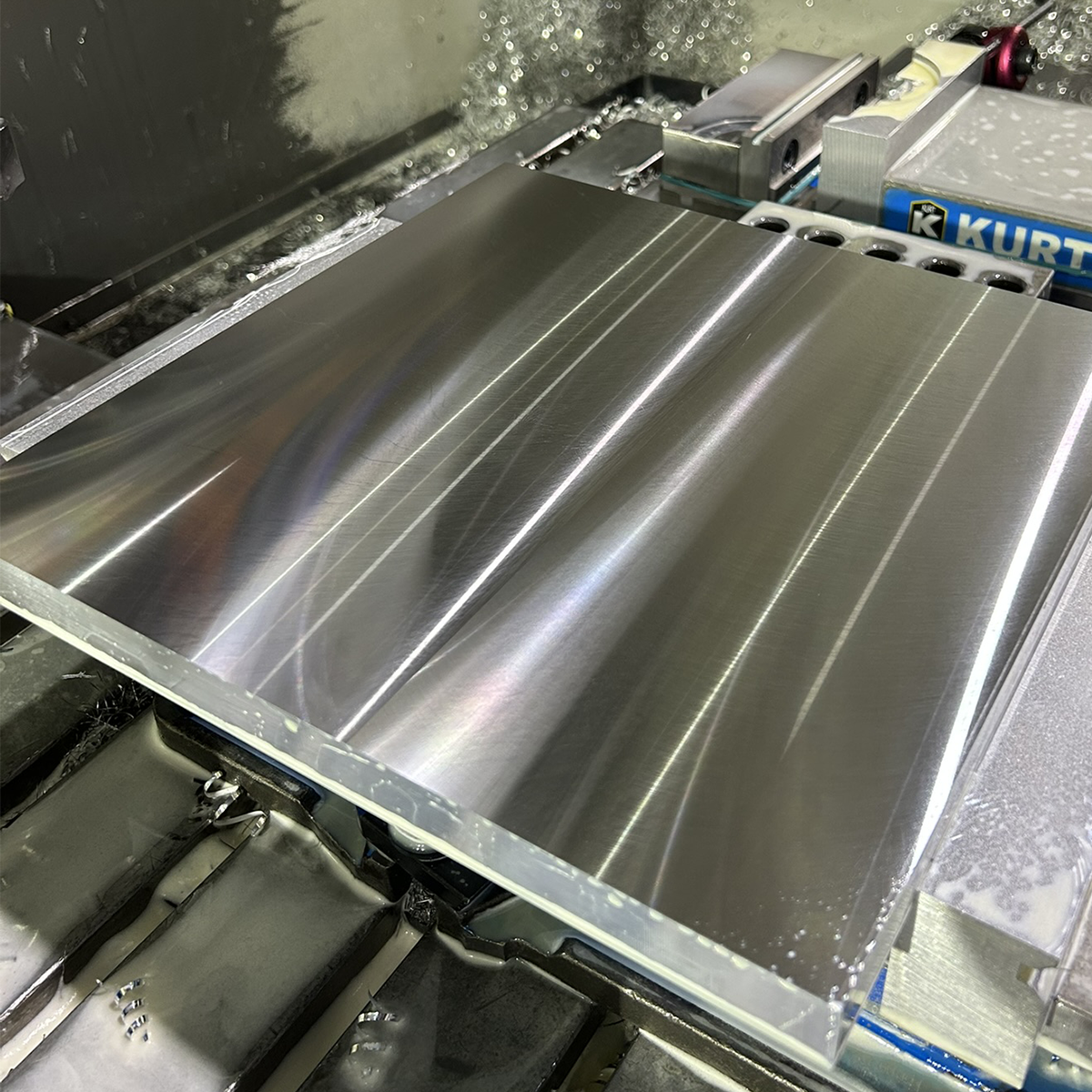

Get the finish you want—without sacrificing cycle time. Our custom-made PCD-tipped insert delivers outstanding surface finish and extended tool life for aluminum finishing applications. Built with a unique, custom-ground wiper geometry designed specifically for Deka Tool B36 & B52 Fly Cutters, it’s made to perform where it counts.
WARNING:
Do not exceed listed spindle speeds (Maximum RPM)
Recommended Cut Parameters
- Surface Feet per Minute (SFM): 2,000 - 6,000
- Feed Rate: 0.003”—0.014” ipr (Doc up to 0.01”), 0.003”—0.005” ipr (Doc 0.01”+)
- Depth of Cut: Minimum cleanup to 0.08”
- Cutter Engagement: 75% or more of the cutter diameter is recommended.
Material Selection Key
|
Primary Material |
|
|---|---|
|
Secondary Material |
|
ISO Material Groups Chart
|
Letter Code |
P |
M |
K |
N |
S |
H |
|---|---|---|---|---|---|---|
|
Material Group |
Steel |
Stainless Steel |
Cast Iron |
Nonferrous |
Superalloys |
Hardened Steel |

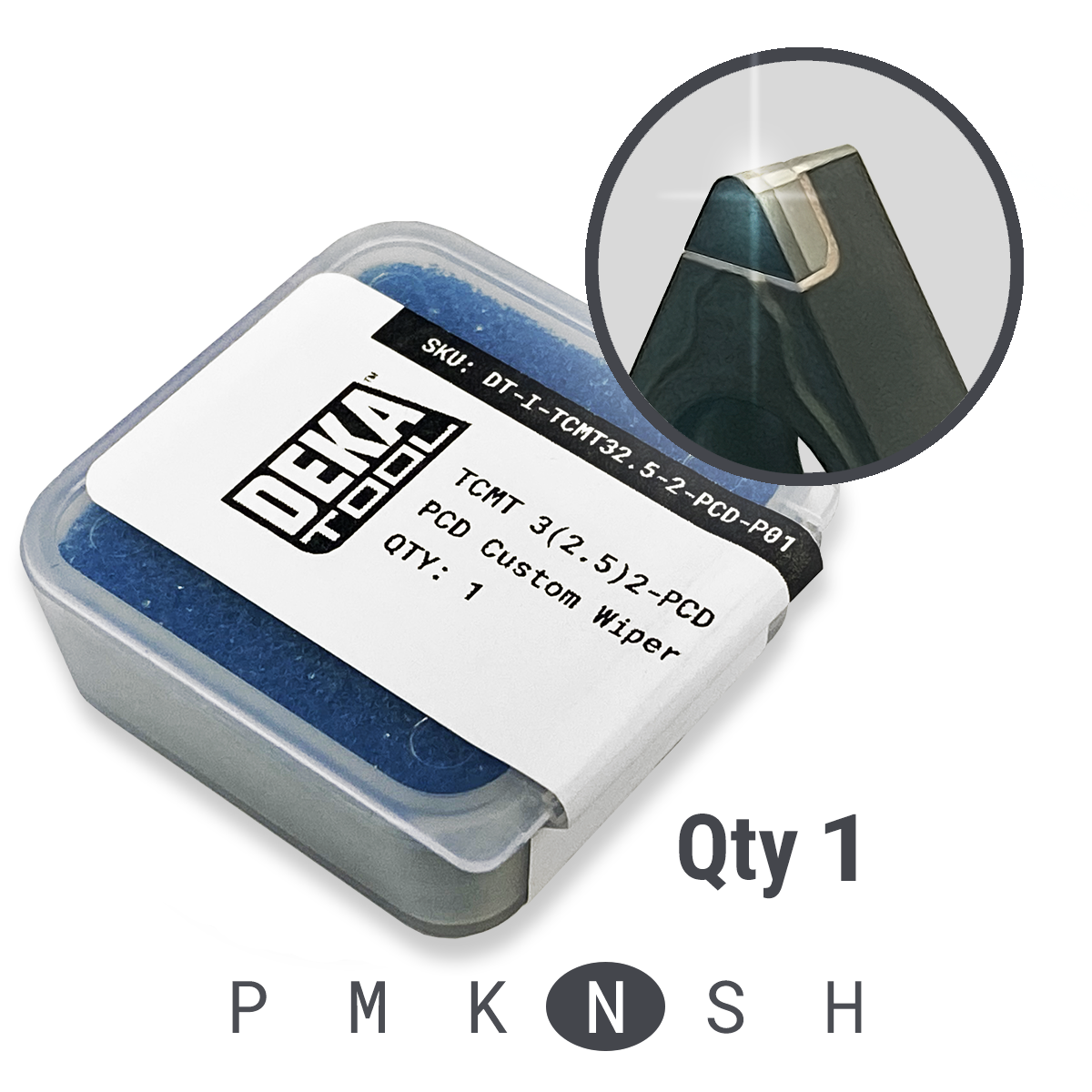

The B36 & B52 Fly Cutters use a TC**-32.5* (ANSI) insert
